Vibration Protection Kit (VPK)

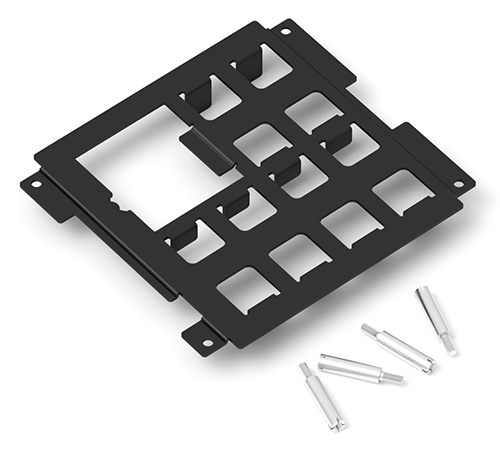

An isometric render of the TPB2's vibration protection kit parts.

The vibration protection kit (VPK) for the TPB2 consists of a vibration protection plate, four special screws, and two small rubber parts that cushion the WA2000 Wi-Fi add-on module when it is installed (they come attached to the plate and are not visible in the above picture).

The plate is installed as shown in the exploded view of the Tibbo Project System (TPS):

  1. Four M2.5 screws securing the Tibbo Project PCB (TPP) are removed and four special screws (shown above) are instead used to attach the TPP onto the bottom cover.
  2. The vibration protection plate goes over Tibbits (installed on the TPP) and rests on these special screws.
  3. Four M2.5 screws that originally held the TPP in place are used to secure the vibration protection plate onto the special screws.
