Parts and Accessories

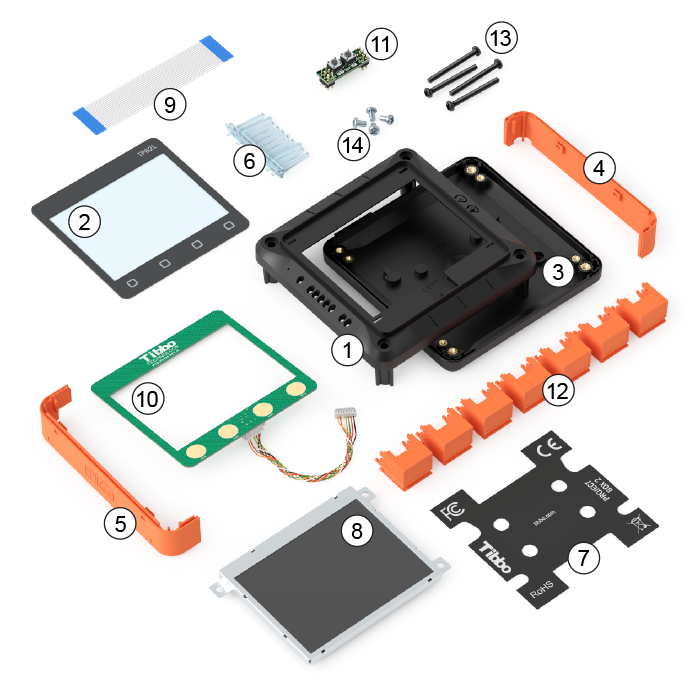

| Parts included in the TPB2L kit | |||
|
No. |
Part |
Description |
Qty. |
|
1. |
PM01P1053 |
Top cover (TPB2L) |
1 |
|
2. |
PM03P1018 |
Faceplate (TPB2L) |
1 |
|
3. |
PM01P1055 |
Bottom cover (TPB2, TPB2L) |
1 |
|
4. |
PM01P1049 |
Right side wall (all TPB models) |
1 |
|
5. |
PM01P1050 |
Left side wall (all TPB models) |
1 |
|
6. |
PM06P1004 |
LED light guide (all TPB models) |
1 |
|
7. |
PM03P1017 |
Back label (TPB2, TPB2L) |
1 |
|
8. |
LCD-P0005 |
3.5" 320x240 TFT LCD panel with controller |
1 |
|
9. |
WAS-P0036 |
LCD-to-TPP2 cable |
1 |
|
10. |
PA-PCB-P2165-00 |
Keypad PCB for TPB2L, with cable |
1 |
|
11. |
PCB-P2164 |
MD/RST button PCB (all TPB models) |
1 |
|
12. |
PM12P1001-03 |
Blank Tibbit shell, C1 form factor, orange |
7 |
|
13. |
SM3R5+32SPBC |
Main Screw — 2.5mm hex socket, 3.5mm x 32mm thread (all TPB models) |
4 |
|
14. |
SM2R6+05SPNC |
PCB screw (all TPB models) |
4 |
The TPB2L can be purchased with an optional DIN rail mounting kit and an available vibration protection kit (VPK), with which Tibbo Project System (TPS) devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard.
The TPB2L uses the same VPK as the TPB2.
