SCAP Library
This section is currently being reworked. We apologize for the inconvenience. If you need immediate assistance, please contact Tibbo Support.

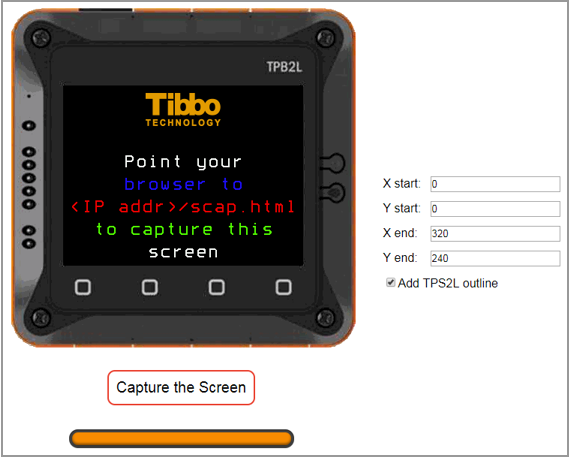

The SCAP library adds the ability to take the screenshots of the LCD screen of TPP2L and TPP2L(G2) devices. To execute a screen capture, point the browser to your device's IP address, adding /scap.html and click the Capture the screen button on the HTML page. Here is an example of a screen grab obtained in this fashion:
Library Info
|
Supported platforms: |
TPP2W-G2, EM2000W, and other platforms supporting our standard 320x240 TFT LCD screen |
|
Files to include: |
scap.tbs, scap.tbh, scap.html, scap_bmpfile.html (from current_library_set\scap\). |
|
Dependencies: |
|
|
API procedures: Use API procedures to interact with the library. |
scap_start() — starts the SCAP library. |
|
Event procedures: Call event procedures from corresponding event handlers, as described here. |
--- |
|
Callback procedures: Implement the bodies of callback procedures elsewhere in your project. |
--- |
|
Required buffer space: |
--- |
