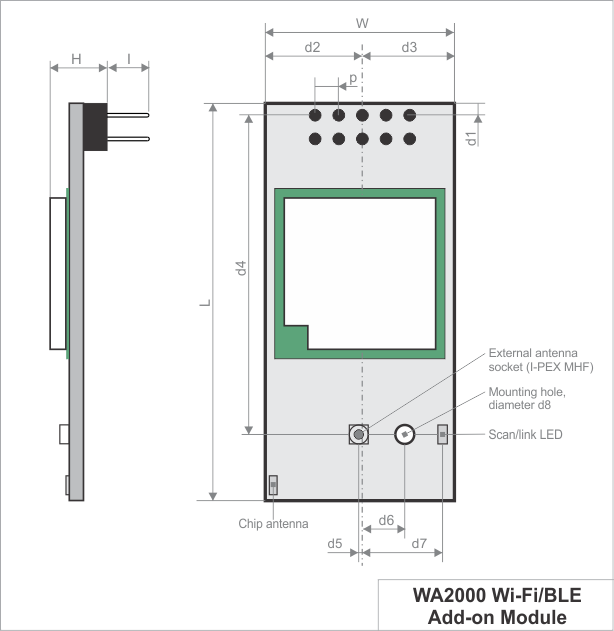

L

Max.

42.0 mm

Module length

W

Max.

20.0 mm

Module width

H

Max.

5.8 mm

Module height

I

Min.

6.5 mm

Pin length

p

Avg.

2.54 mm

Pin pitch

d1

Avg.

1.4 mm

Distance from the first pin row to the top side of the module

d2

Avg.

10.8 mm

Distance from the centerline to the left side of the module

d3

Avg.

9.2 mm

Distance from the centerline to the right side of the module

d4

Avg.

33.6 mm

Distance from the first pin row to the center of the antenna connector, the center of the mounting hole, and the center of the status LED

d5

Avg.

0.3 mm

Distance from the centerline to the center of the antenna connector

d6

Avg.

4.5 mm

Distance from the centerline to the center of the mounting hole

d7

Avg.

8.1 mm

Distance from the centerline to the center of the status LED

d8

Avg.

2.1 mm

Mounting hole diameter
