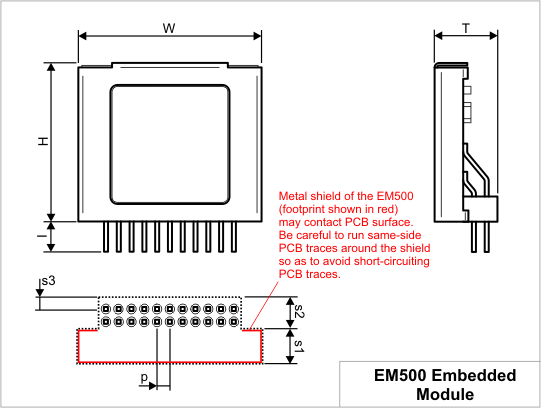

Mechanical Dimensions
|
H |
Max. |
16.0 |
Module height |
|
W |
Max. |
18.5 |
Module width |
|
T |
Max. |
6.5 |
Module thickness |
|
I |
Min. |
5.5 |
Lead length |
|
p |
Aver. |
1.27 |
Pin pitch |
|
s1 |
Max. |
3.7 |
Module footprint dimension |
|
s2 |
Max. |
2.8 |
Module footprint dimension |
|
s3 |
Aver. |
1.0 |
Module footprint dimension |
Dimensions are for reference only. Tibbo assumes no responsibility for any errors in this manual, and does not make any commitment to update the information contained herein.
